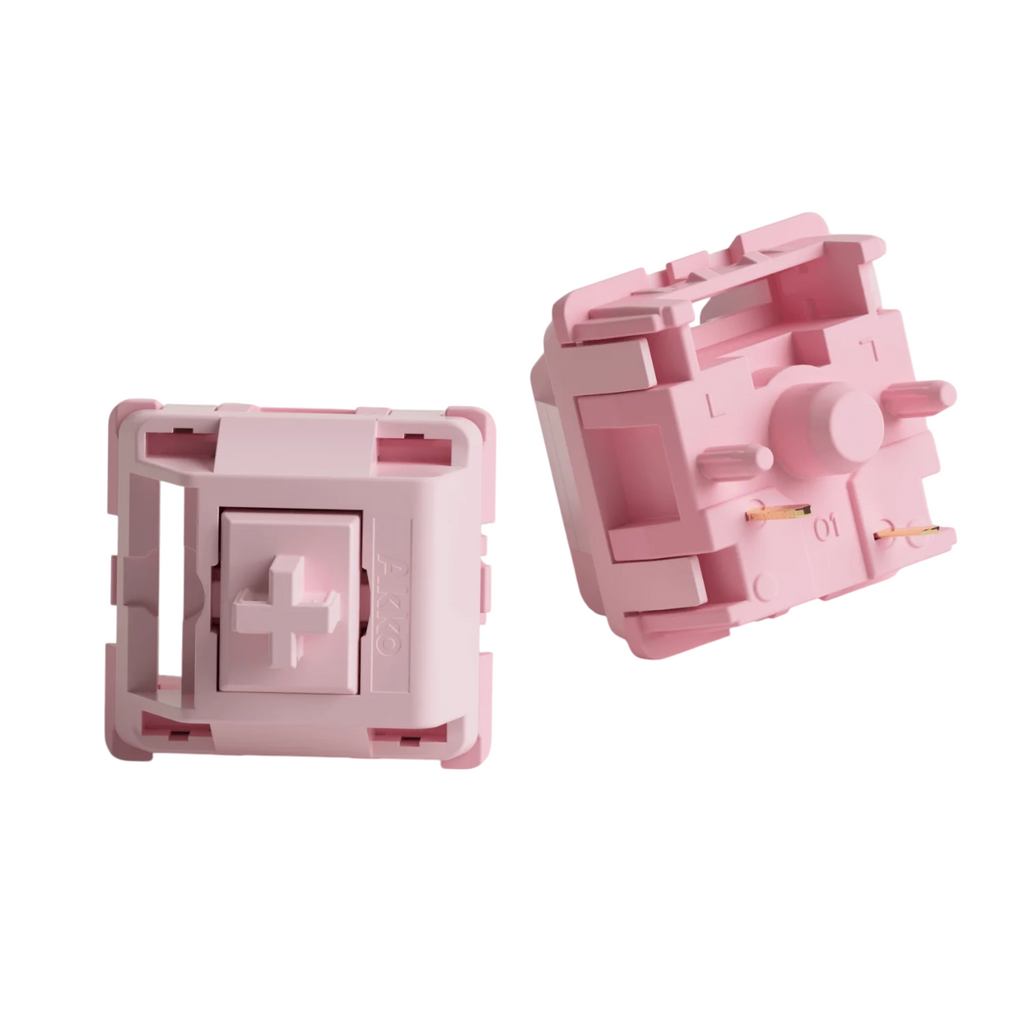

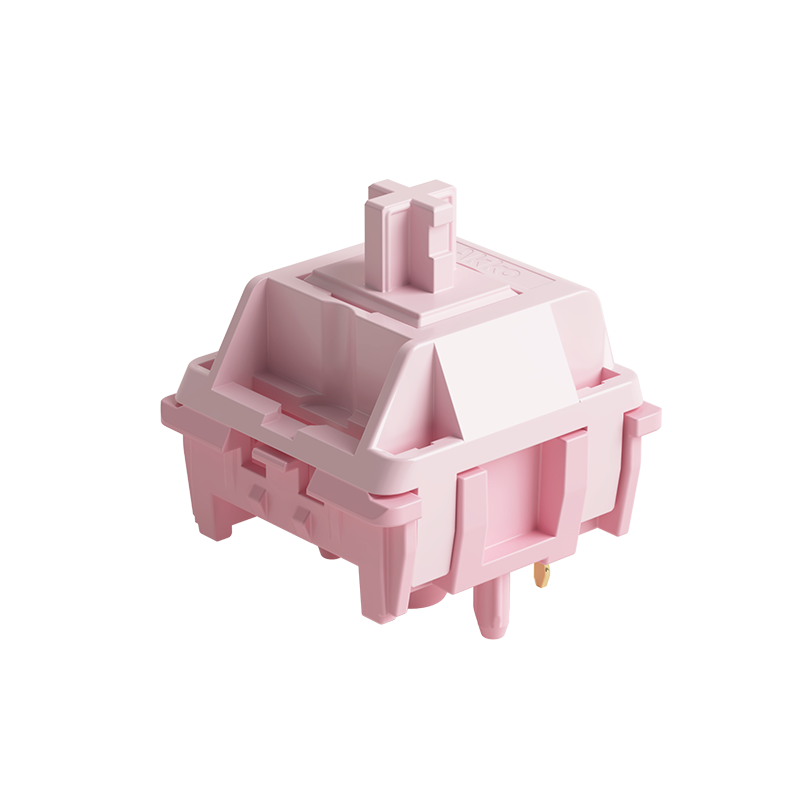

The Akko Stellar Rose is a linear mechanical switch designed to provide a smooth typing experience accompanied by a deep clack sound profile. With factory pre-lubrication and a 5-pin configuration, these switches ensure both aesthetic appeal and reliable performance.
Key Features
Deep Clack Sound Profile: Engineered to produce a deep, satisfying clack upon bottoming out, offering a unique auditory experience.
Smooth Linear Feedback: Provides consistent keystrokes without tactile bumps, ideal for users who prefer a seamless typing experience.
5-Pin Configuration: Ensures enhanced stability when mounted on compatible PCBs, reducing wobble and improving overall typing feel.
Factory Pre-Lubed: Each switch is meticulously pre-lubed at the factory, ensuring smoother keystrokes and a more satisfying typing experience right out of the box.
LED Compatibility: Equipped with an LED slot, these switches are SMD compatible, allowing for customizable RGB lighting effects on backlit keyboards.
Specifications
Type of Switch: Linear
Operating Force: 37gf ± 5gf
Total Travel: 3.8mm
Pre-Travel: 2.0mm ± 0.5mm
Tactile Position: N/A (Linear switches do not have a tactile bump)
Tactile Force: N/A
Bottom-Out Force: 43gf
Additional Technical Details:
Stem: T5 Material
Top Housing Material: PA12 (Polyamide 12)
Bottom Housing Material: PA12 (Polyamide 12)
Pins: 5-Pin for enhanced stability
Spring Length: Not specified
Lifespan: Approximately 60 million keystrokes
Lubrication: Factory pre-lubed
What’s in the Box?
- Akko Stellar Rose Switches (Pack of 45/90/135)
